Deligreen 3.2V BMS 12S 30A 40A 60A smart UART 485 CAN Blue tooth LCD screen Power meter for 12S 36V LiFePO4 Battery RV

- 2022-12-07 -

Product Introduction

12S 36V 200A protection board battery Lithium lifepo4 Battery with PCB common port

◆separate port for charge/discharge We can customize any PCB from 1S to 30S lithium batteries with different current.

◆According to the customer request we can develop PCM in different sizes and structures.

◆BMS manufactured by high quality Mos and IC imported . Keep your battery long cycle serivce life

◆Use top quality (A-level) protective integrated circuit IC, from the solution of Seiko of Japan.

◆Strong load ability, constant discharge current 10A/25/35A/45A/60A , use high voltage resistance, low inner resistance power Mosfet. The heat sink will greatly help cooling.

◆IC itself has power balancing function. The circuit is simple and reliable.

◆Typical voltage detection for each cell. So each battery will be prevented over charged or over discharged. Over current and short circuit protection function is very reliable.Long time short circuit of the load won’t affect the PCB and the battery.Temperature protection during charging and discharging.
◆PCB use high anti-corrosion, high water resistance, high impedance ESD conformal Coating.

Product Parameters
12S 36V 200A protection board battery Lithium lifepo4 Battery with PCB common port
Rated Voltage
Rated/Nominal 3.2V
With Balance
35MV Started when Voltage reach 3.6V
Short Circuit
Charging Voltage
Series *4.2V
Separate Port
Optional (8A discharging port)
Charge current
80A 120A 150A 200A
Discharge current
70A 110A 140A 190A
Peak Discharge
180A 300A 380A 500A
Custom Service

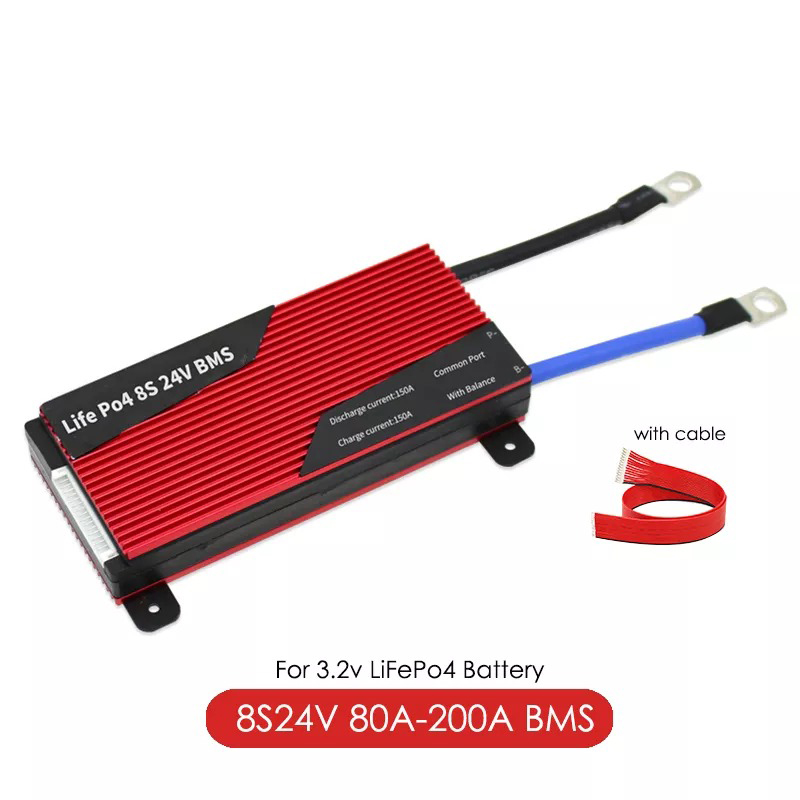

Product Details Show

How To Select BMS


Why Choose Us

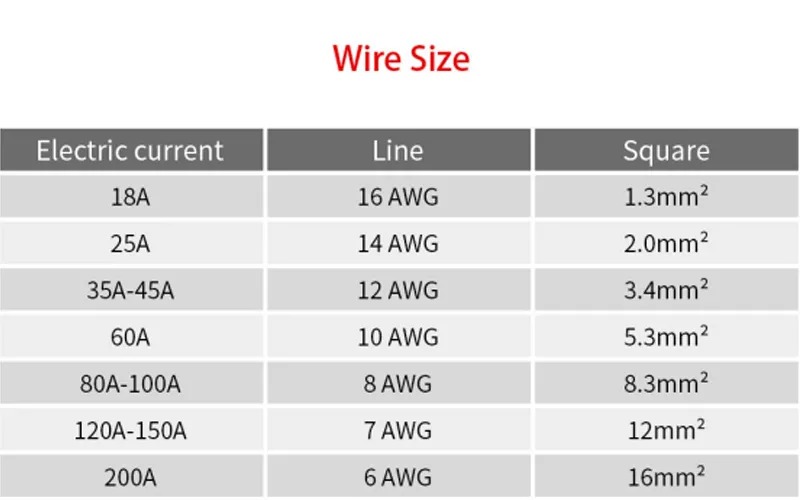

Wire Size

Professional Technical Support

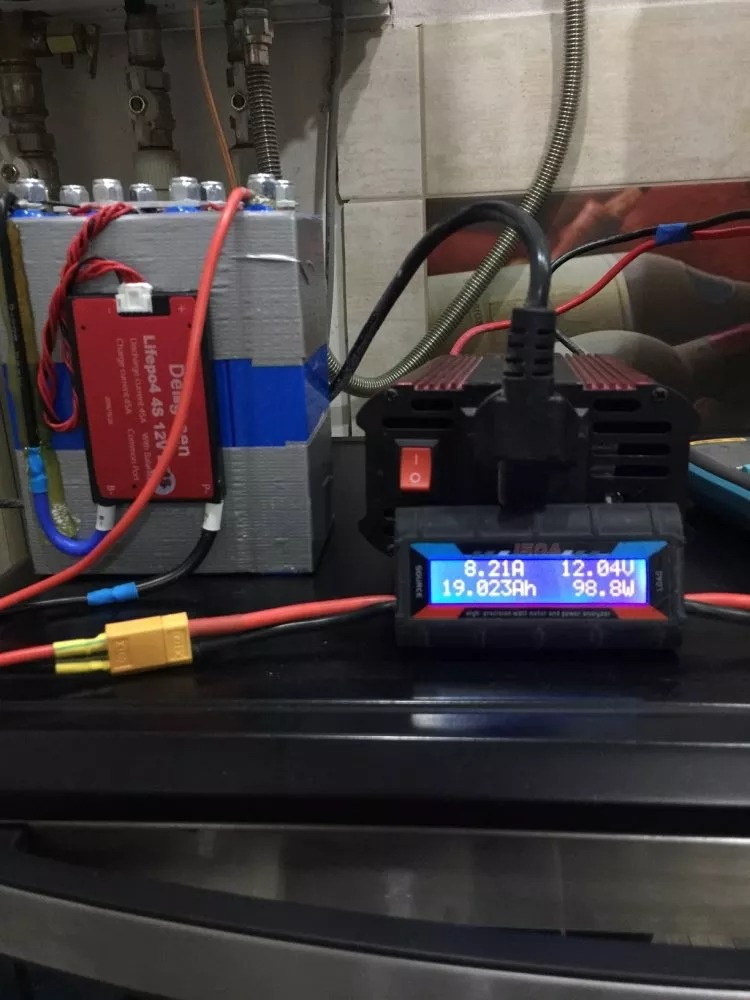

Wide Application
