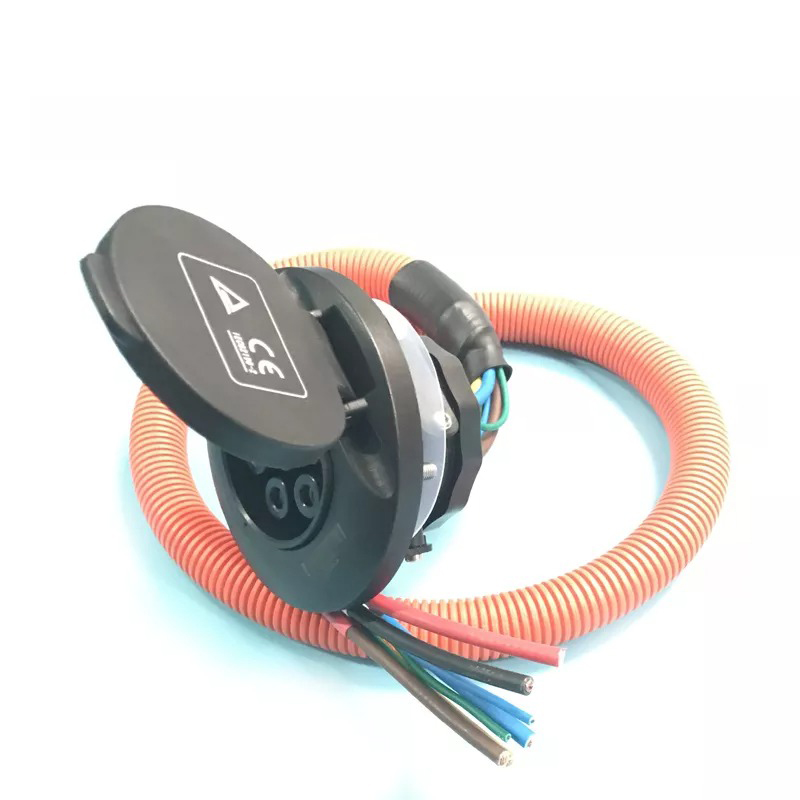

Waterproofed IP67 Electrical Receptacle Type 2 European 32A Inlet Socket with 2M Single Phase cable for Power Supply Side
- 2022-12-14 -
Related Products:
Specification of Type2 AC Inlet socket:
Insert arrangements and functional definition
|
Mark |
functional definition |
| 1- (L1) | AC power |
| 2- (L2) | AC power |
| 3- (L3) | AC power |
| 4- (N) | Neutra |
| 5- (PE) | PE |
| 6- (CP) | Control confirmation |
| 7- (PP) | Connection confirmation |
Model selection and the standard wiring
|
Model |
Number of inserts |
Cable Spec. |
Remark |
|
DSIEC2e-EV16S |
7 |
3*2.5mm+2*0.5mm2 | The length of the cable can be customized |
|
DSIEC2e-EV32S |
7 |
3*6mm+2*0.5mm2 |
Charging Coupler Interface
