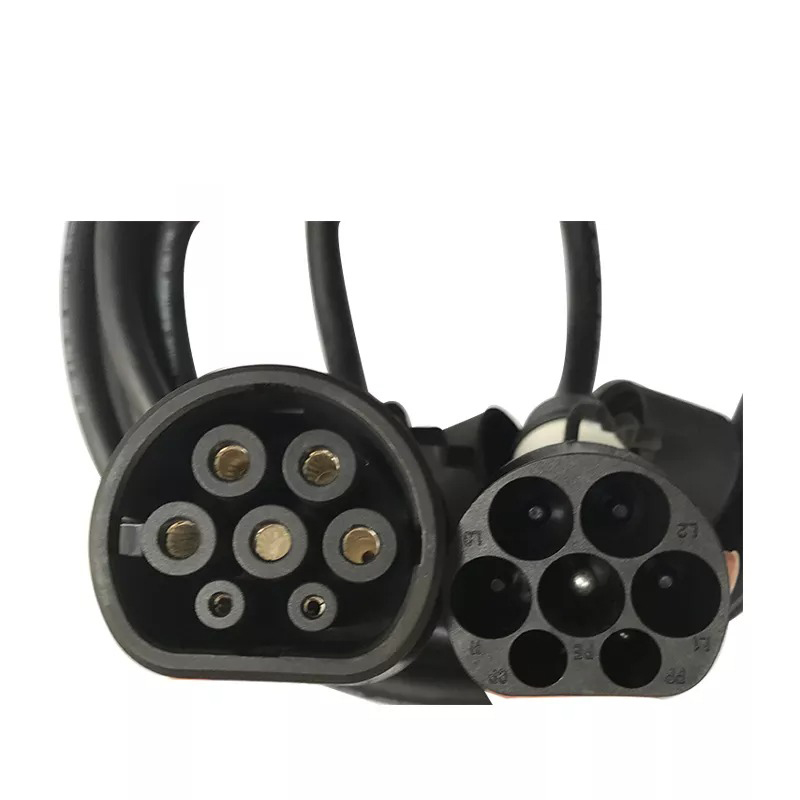

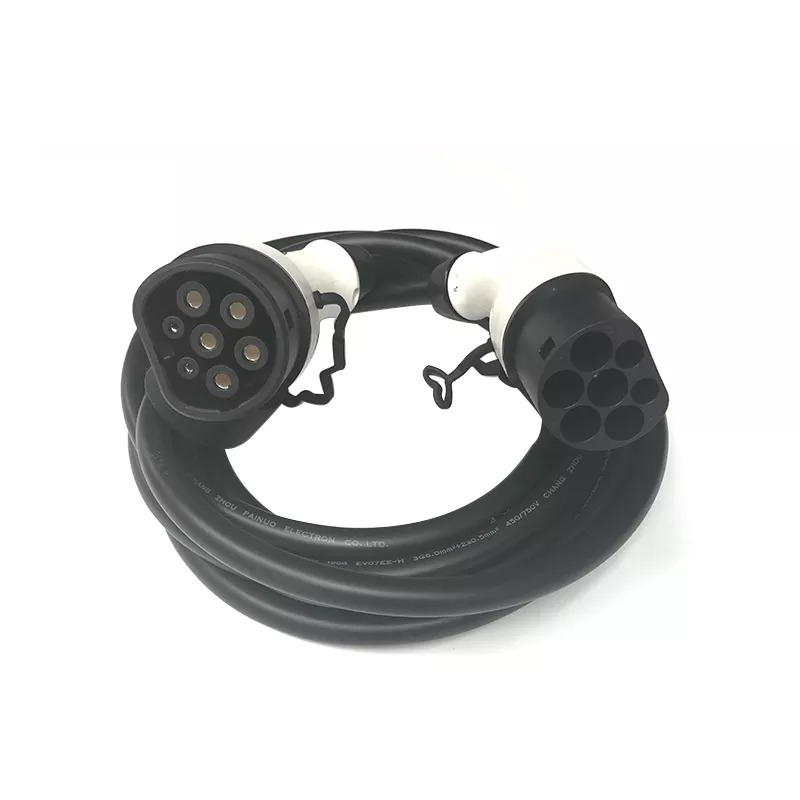

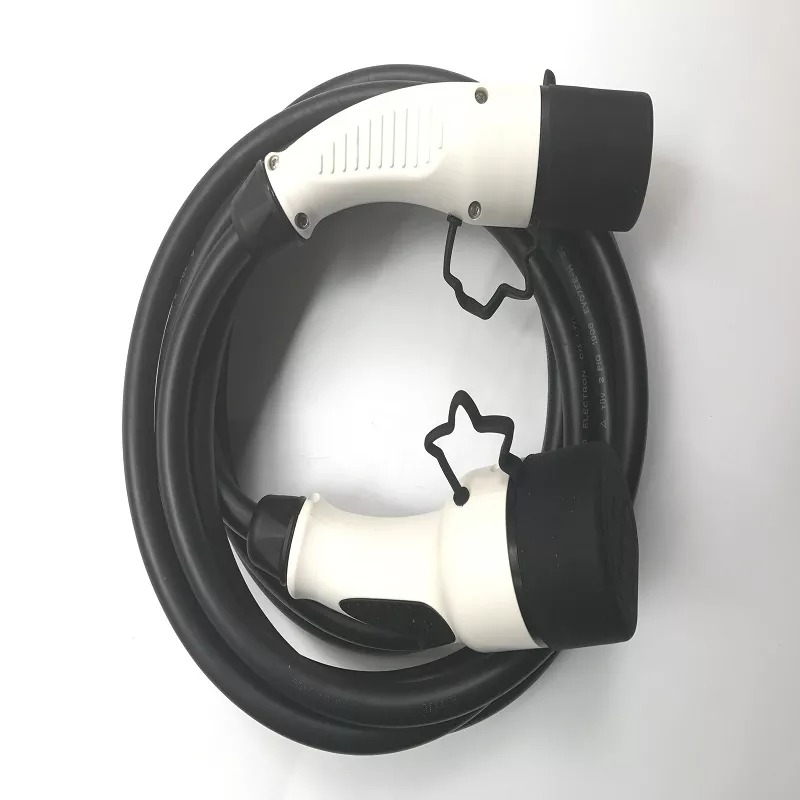

Duosida Type2 to Type2 32A EV Charging Cable 5M 1 Phase
- 2022-12-01 -
Duosida Type2 to Type2 32A EV Charging Cable 5M 1 Phase :
Promotional items in May ,only with 10pcs avaliable ,sold out then will back to normal price ,thanks!
Specification of Type2 To Type2 AC Inlet socket:

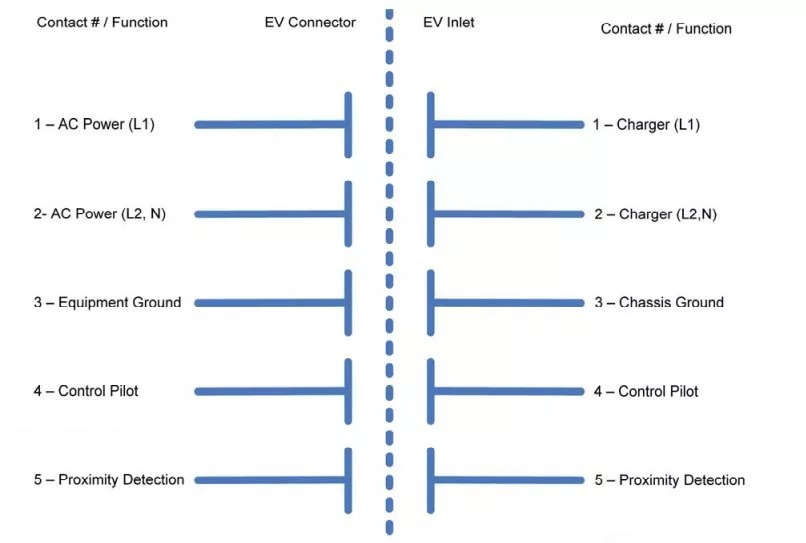

Insert arrangements and functional definition
| Terminal name | functional definition |
| L1 | Live wire |
| L2/N | Neutral wire |
| Equipment Ground | PE |
| Control Pilot | Control Pilot |
| Proximity Detection | Proximity Detection |
Model selection and the standard wiring
|
Model |
Number of inserts |
Cable Spec. |
Remark |
|
V2-DSS-EV16P |
5 |
3*2.5mm2+2*0.5mm2 | The length of the cable can be customized |
|
V2-DSS-EV32P |
5 |
3*6mm2+2*0.5mm2 |

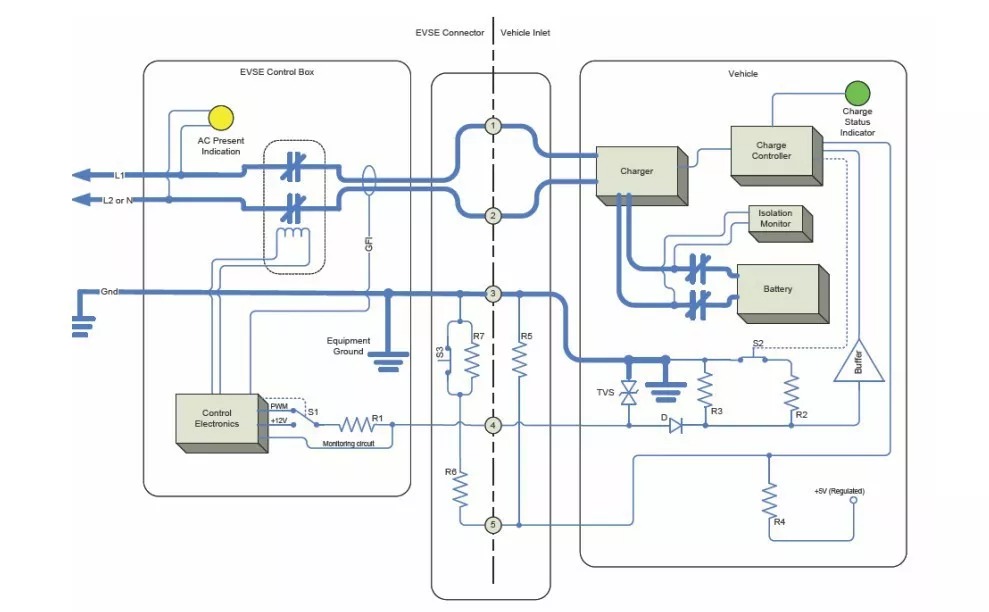

Charging Coupler Interface
